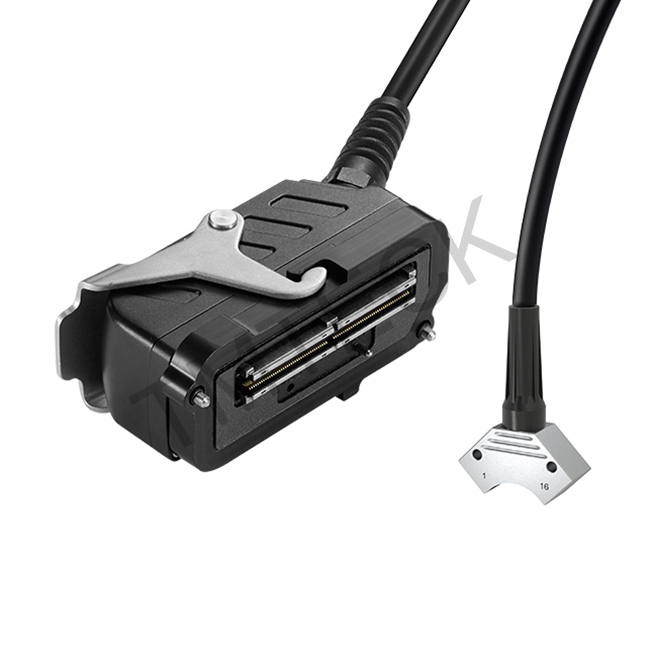

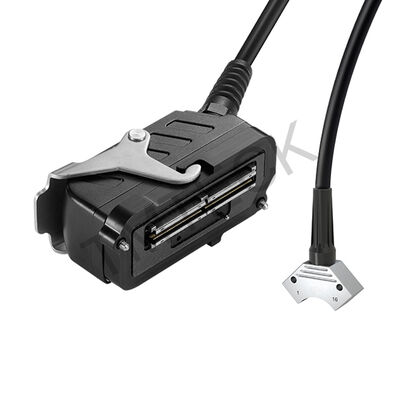

Composite plate inspection TS28 R1 Concave Probe

Concave probe: the detection is more stable, the concave array design is better to match the detection components, and is widely used for CFRP corner detection.

Advantages

1.Near-wall probes have shorter dead zones at both ends

2.Widely used in composite channel inspection

3.Can be used for C-scan detection of composites (delamination, debonding and porosity)

4.Automatic and manual scanning

Applications

1.Composite plate inspection

2.Immersion scanning area coverage

3.Plates, billets and bars

4.Disks, axles and shafts

Specification

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:2.25C16-1.0x8-TS28/2.25C16-16.0x8-R1

Element:16

Element Shape:Concave

Size:R10.2,LxWxH 23.5x14x23.5(mm)0.93x0.55x0.93(in)

Application:Composite plate inspection

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
