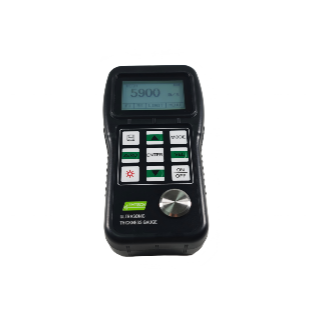

TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites

Informasi Dasar

Tempat asal:	Cina
Nama merek:	TMTECK
Sertifikasi:	CE
Nomor model:	TM210 Ditambah

Kuantitas min Order:	1
Harga:	Bisa dinegosiasikan
Kemasan rincian:	Karton
Waktu pengiriman:	Seminggu
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	100 buah dalam waktu dua minggu

Harga terbaik Hubungi sekarang

Informasi Detail

Kecepatan Suara:	1000m/dtk~9999m/dtk	Rentang Pengukuran:	0,75 mm~300,0 mm (0,03 inci~11,8 inci)
Menampilkan:	LCD 128*64 dengan lampu latar LED	Jaminan:	2 tahun
dukungan yang disesuaikan:	OEM, ODM, OBM	jenis:	Mesin Pengujian

Deskripsi Produk

Ultrasonic Thickness Gauge TM210 PLUS

Features

1. Capable of performing measurements on a wide range of materials, including metals, plastics,

ceramics, composites, epoxies, glass, and other ultrasonically well-conductive materials.

2. Transducer models are available for special applications, including coarse-grained material and

high-temperature applications.

3. Probe-Zero function, Sound-Velocity-Calibration function.

4. Two-Point Calibration function.

5. Coupling status Indicator showing the coupling status.

6. Battery information indicates the remaining capacity of the battery.

7. Auto sleep and auto power off functions to conserve battery life.

8. Optional software to process the memory data on the PC.

9. An optional thermal mini-printer to print the measured data via the USB port.

10. Adjust the gain function, can easy to test the cast iron material.

Specifications

Display: 128×64 LCD with LED backlight

Measuring range: 0.75mm~300.0mm (0.03inch~11.8 inch)

Sound velocity: 1000m/s~9999m/s (0.039~0.394in/µs)

Display resolution:0.01mm or 0.1mm (lower than 100.0mm)

0.1mm (more than 99.99mm)

Accuracy: ±(0.5%Thickness +0.02)mm, depends on Materials and conditions

Units: Metric/Imperial unit selectable.

Lower limit for steel pipes:

5MHz probe: F20mm´3.0mm(F0.8´0.12 inch)

10MHz probe: F20mm´3.0mm(F0.6´0.08 inch)

Power Source: 2pcs 1.5V AA size, batteries.100 hours typical operating time(LED backlight off).

Communication: USB serial port

Outline Dimensions: 150mm×74mm×32mm

Weight: 238 g

Four measurements per second for a single point measurement,

Memory for up to 5 files(up to 100 values for each file) of stored values

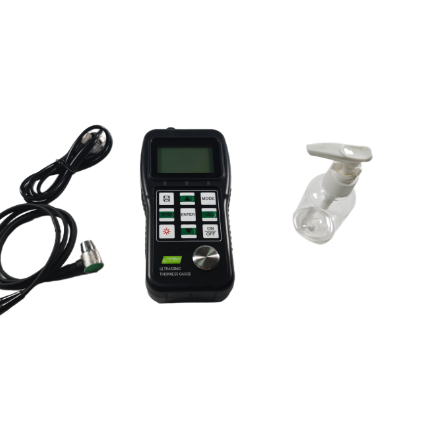

Configuration

Selectable Probes for TM210 Plus
