Rumah > Produk> mengukur ketebalan ultrasonik> TM290 High Precision Ultrasonic Thickness Gauge with 0.001mm Resolution and A/B Scanning

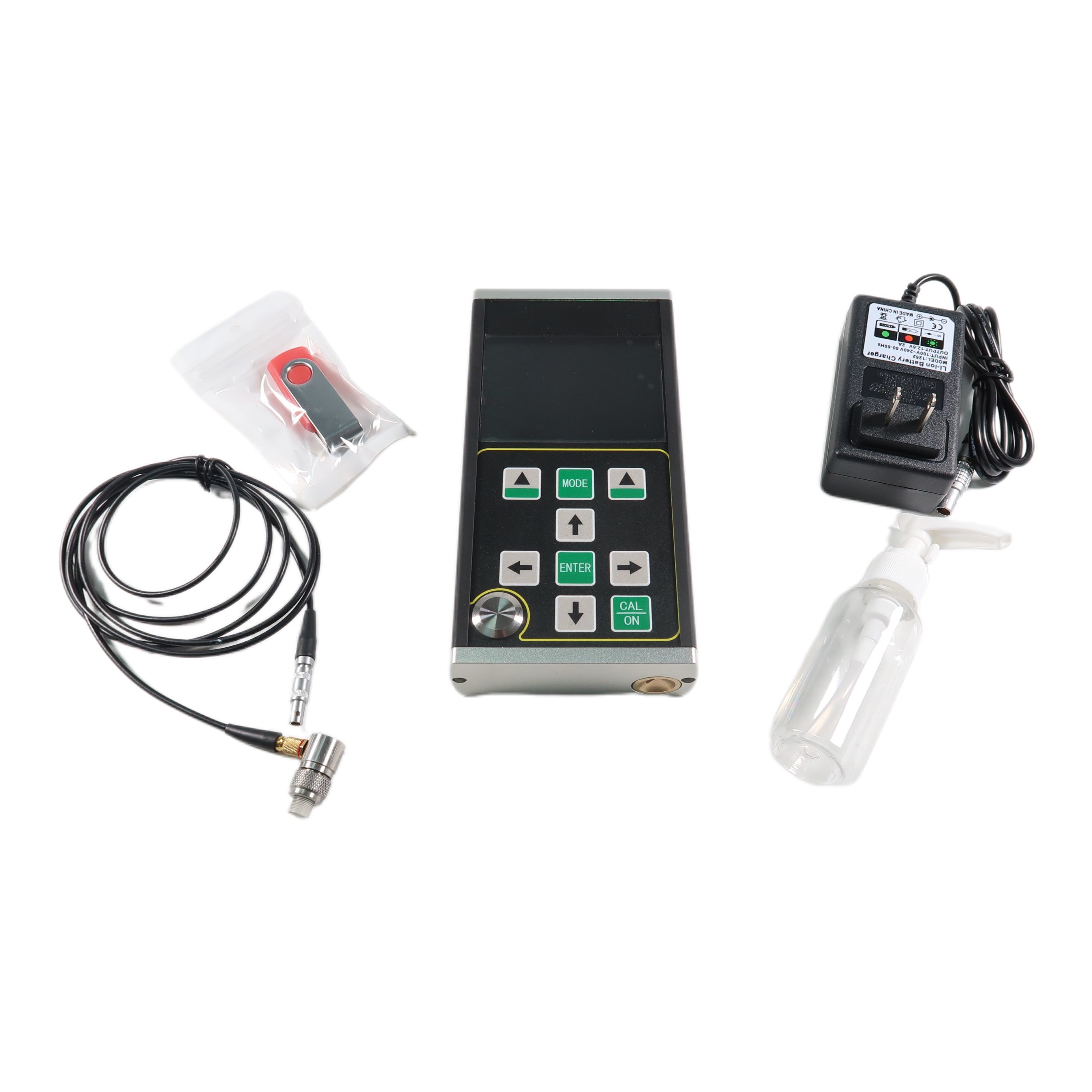

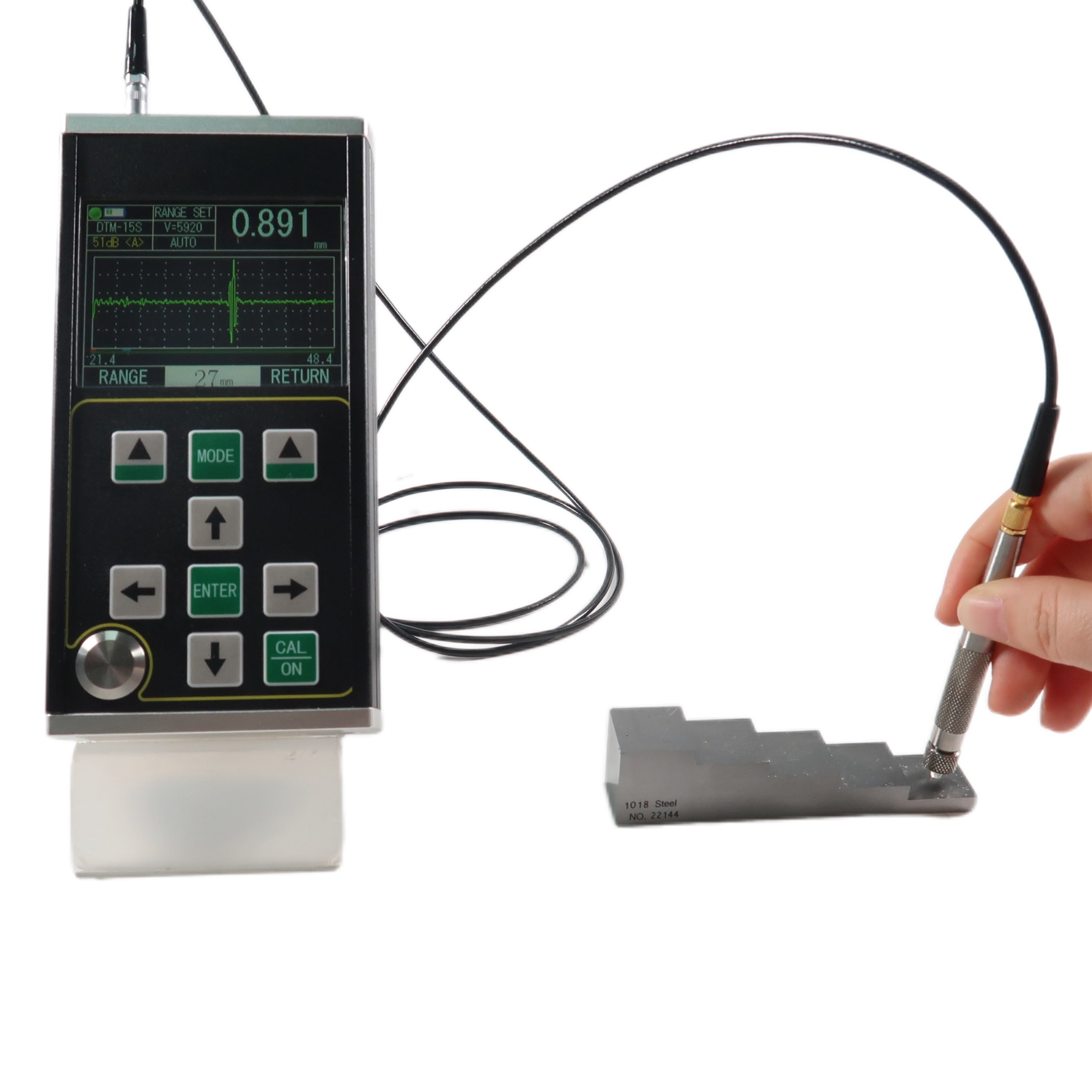

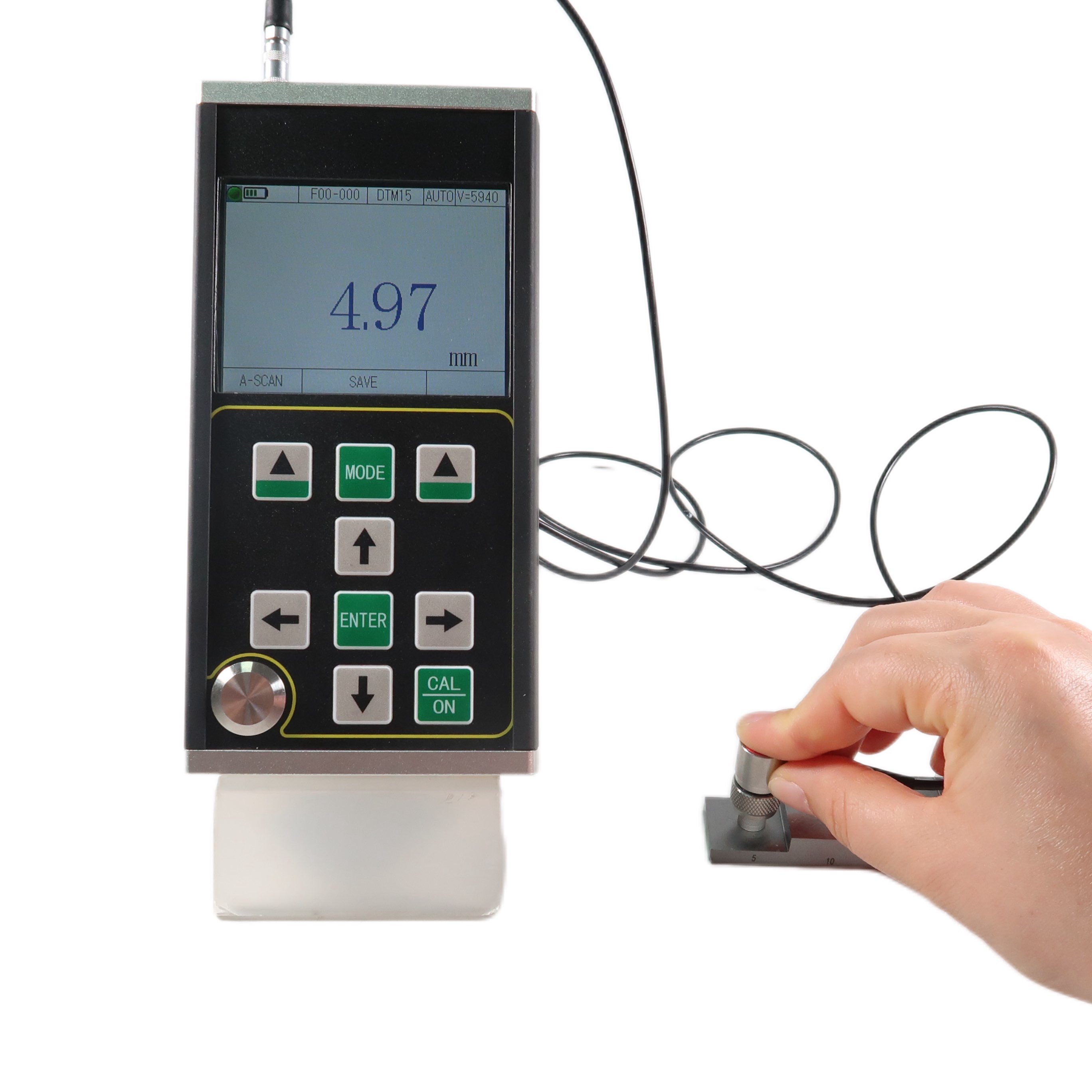

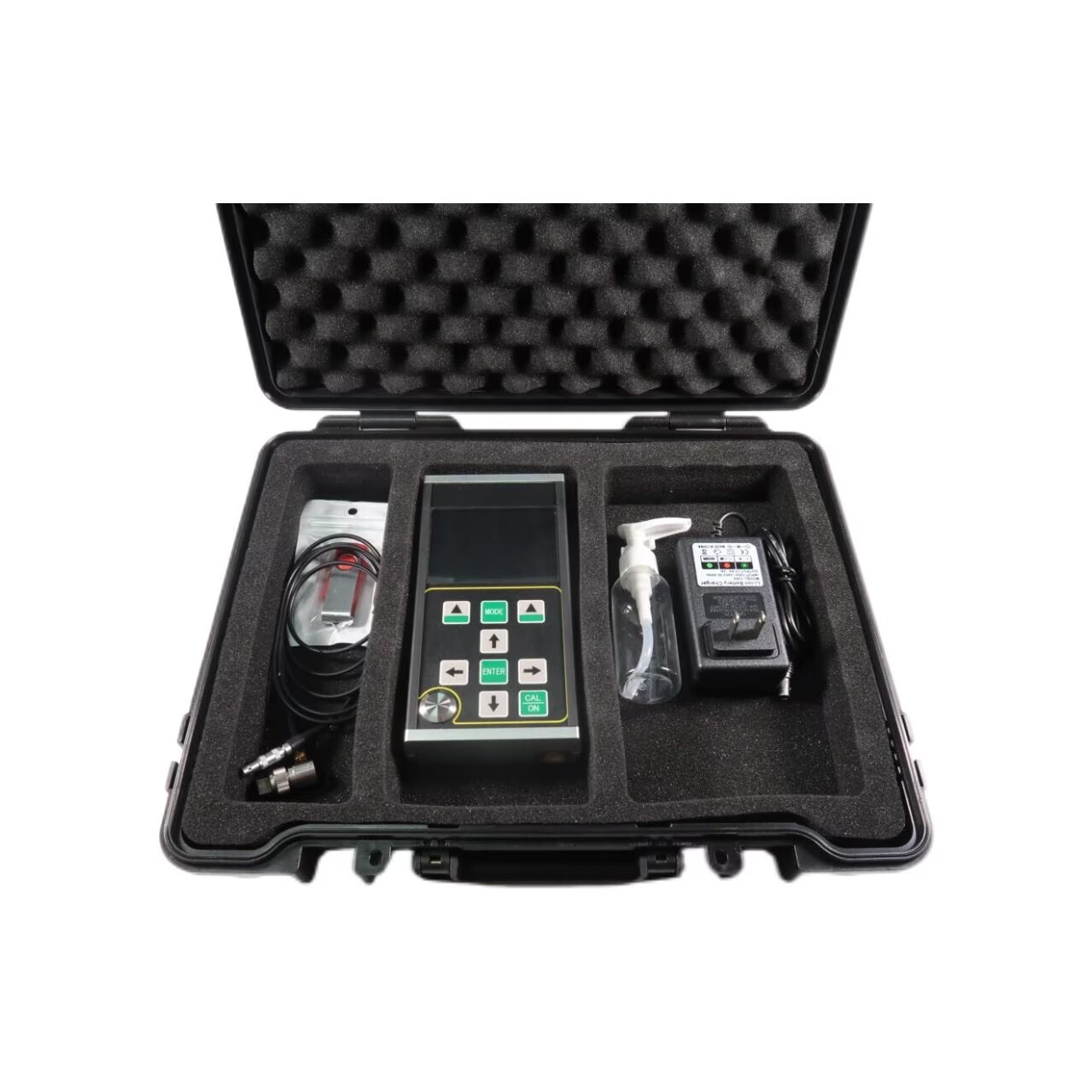

TM290 High Precision Ultrasonic Thickness Gauge with 0.001mm Resolution and A/B Scanning

TM290 High Precision Ultrasonic Thickness Gauge with 0.001mm Resolution and A/B Scanning
TM290 High Precision Ultrasonic Thickness Gauge with 0.001mm Resolution and A/B Scanning
TM290 High Precision Ultrasonic Thickness Gauge with 0.001mm Resolution and A/B Scanning TM290 High Precision Ultrasonic Thickness Gauge with 0.001mm Resolution and A/B Scanning TM290 High Precision Ultrasonic Thickness Gauge with 0.001mm Resolution and A/B Scanning TM290 High Precision Ultrasonic Thickness Gauge with 0.001mm Resolution and A/B Scanning
Informasi Dasar
Tempat asal: Cina
Nama merek: TMTeck
Sertifikasi: CE
Nomor model: TM290
Kuantitas min Order: 1 buah
Harga: Bisa dinegosiasikan
Kemasan rincian: Karton; 30*15*25cm; 2.5KG
Waktu pengiriman: 5-8 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, PayPal
Menyediakan kemampuan: 50 buah dalam waktu satu minggu
Harga terbaik Hubungi sekarang
Informasi Detail
Rentang pengukuran (baja 45#): 0,15mm – 1800mm Resolusi: 0,1 mm, 0,01 mm, 0,001 mm (0,01 inci, 0,001 inci, 0,0001 inci)
Frekuensi pengukuran: 4Hz、8Hz、16Hz Kesalahan Pengulangan: ±0,001mm（Uji mandiri）
Dimensi Keseluruhan: 204x100x36 (mm) Kecepatan Suara: 400-19999 m/dtk
Menyoroti:

High Precision Ultrasonic Thickness Gauge

,

0.001mm Resolution Digital Thickness Gauge

,

A/B Scanning Thickness Measurement Device

Deskripsi Produk

TM290 High Precision Ultrasonic Thickness Gauge Product Overview TM290 is a new type of handheld high-precision digital ultrasonic thickness gauge with A/B scanning. It adopts the principle of ultrasonic thickness measurement based on pulse reflection. It is suitable for the measurement of material thickness that can make ultrasonic wave propagate in it at a constant speed and get the reflection from its back. The measurement resolution is 0.001mm and the measurement range is
